Versatile and Portable Machine for a Wide Range of Pipe Shapes | Advanced Video Detection Technology | research, develop and manufacture robots in cleaning industry

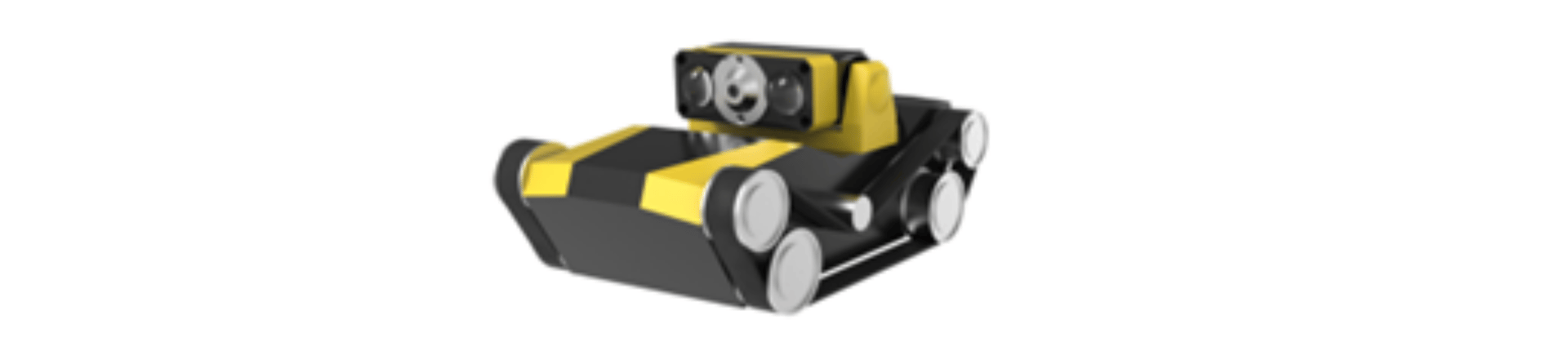

This versatile machine is designed to accommodate a wide range of pipe shapes, including round, square, and irregular configurations. It incorporates advanced video detection technology, enabling construction personnel to gain real-time insights into confined areas, thereby enhancing their situational awareness on the job site.
The machine is small, light, and easy to carry.
Video monitoring always keeps track of the construction process, providing photos and videos of the whole process. Through the convenience of a remote control or wired control, a single individual can effectively manage and execute all tasks, resulting in significant reduction of labour costs.
Suitable for all cleaning service companies and home DIY construction work.

Measurements：200mm (L) ×130mm (W) ×100mm (H)
Weight: 2 Kg; Power: 120 W
Voltage: DC24V (Lithium powered battery).
Movement journey:
- wired control: 30 meters （metal shield)
- remote control: 150 meters (open area)
Movement mode: double crawler drive; rotation radius: zero (360 ° rotation)
Movement performance:
- obstacle crossing > 45mm,
- hill climbing > 40°
Speed: 0—12 meters/min (stepless speed change).
Camera and lighting:
- handheld 10.4″ 800*480 HD display.
- High-definition camera with bright LED lighting, includes display, video, playback, photo, storage, and other functions
Camera movement: automatic 360° horizontal rotation / 180° tilt.
Control mode: handheld remote or wired control

1x remote controlled multi-purpose inspection robot
2x DC24 lithium battery panels (one gifted)
1x Remote control (camera + LED lighting): (already fixed onto the robot).
1x Remote control + display screen:
- controlling front, back, left, and right movement;
- display, video recording, video playback, photo-taking, and storage functions
1x Lithium battery charger
1x instructions manual
1x video operation USB disk
