Features

  • Capable of cleaning central air-conditioning air supplies and exhaust ducts, dryer vents and other types of ducts.

  • With ample trunk space to accommodate all necessary equipment, a family car enables a single individual to effortlessly complete all required tasks, leading to substantial savings in terms of time, money, and physical exertion.

  • Suitable for all cleaning service companies and family DIY duct cleaning work.

  • Machine possesses three powerful functions:

    • Plug-in flexible shaft + vacuum hose that can be assembled into any lengths, suitable for use in small areas, such as small offices, houses, apartments, etc.

    • Video monitoring keeps track of the cleaning process, and can provide videos and photos before, during and after the cleaning.

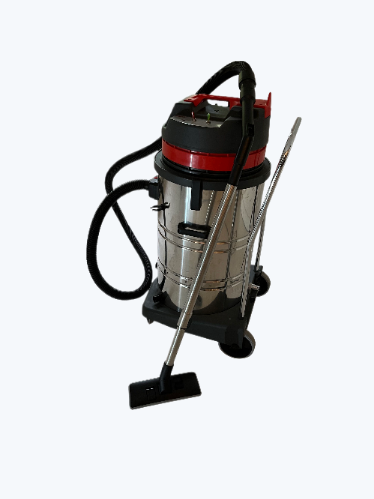

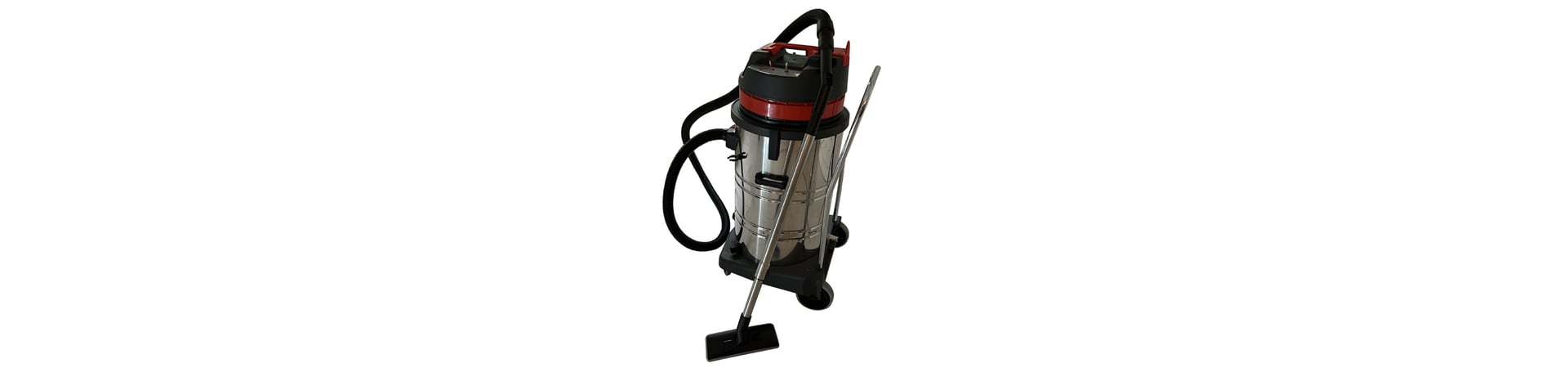

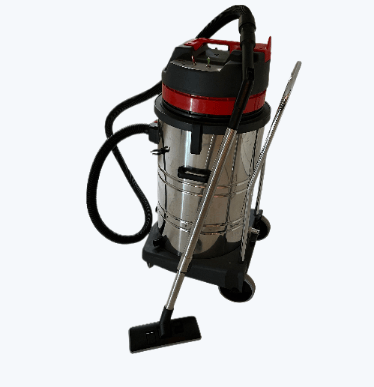

    • After completing the duct cleaning work, the machine can serve a dual purpose as an ordinary vacuum cleaner to clean the work site, thereby saving on the additional expense of purchasing a separate vacuum cleaner.

Parameters

  • Cleaning duct type: rectangular and circular pipe.

  • Material: metal and composite materials.

  • Cleaning range:

    • Rectangle: height 80--600mm × width 80--1500mm.

    • Round: diameter Φ80--Φ600mm.

  • Dimensions: Φ 450mm (diameter) × 1000mm (height) (excluding portable trolley)

  • Weight: 25Kg (excluding portable trolley)

  • Voltage: AC220V/50Hz or AC110V/60Hz

  • Power: 2000W (AC220V/50Hz) or 1000W (AC110V/60Hz)

  • Vacuum suction force: 25000Pa; suction flow: 160L/S

  • Brush speed: 600-1050rpm(infinitely variable speed )

  • Cleaning torque: > 3N.m

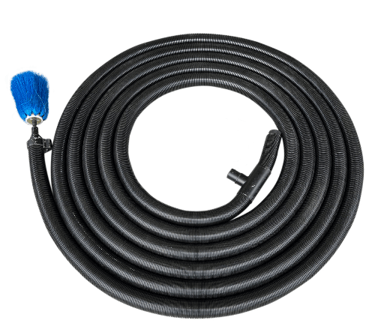

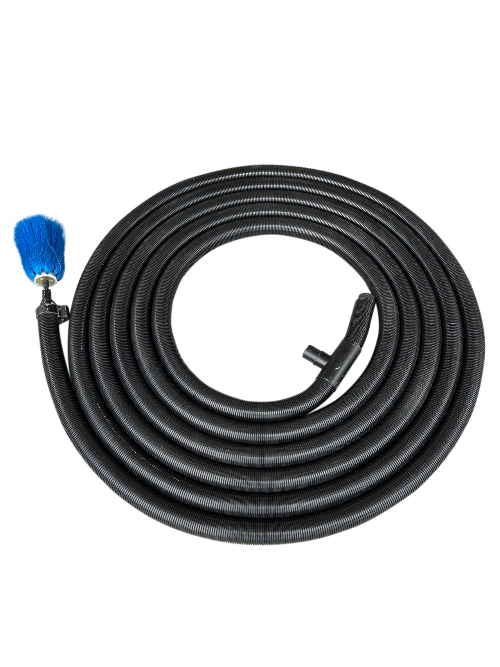

  • Equipped with a 10-meter-long flexible shaft (flexible shaft + vacuum hose)

  • Camera and lighting: high-definition camera + bright LED lighting with arm-mounted 4.3-inch 800*480 high-definition display. Camera includes videotaping, playback, photo taking, storage (TF card) functions

  • Cleaning mode: Left-axis rotation and right-axis rotation cleaning

  • Control mode: manual control / remote control

Machine parts

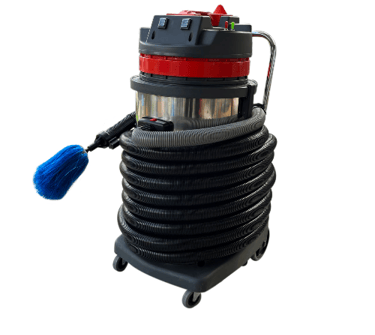

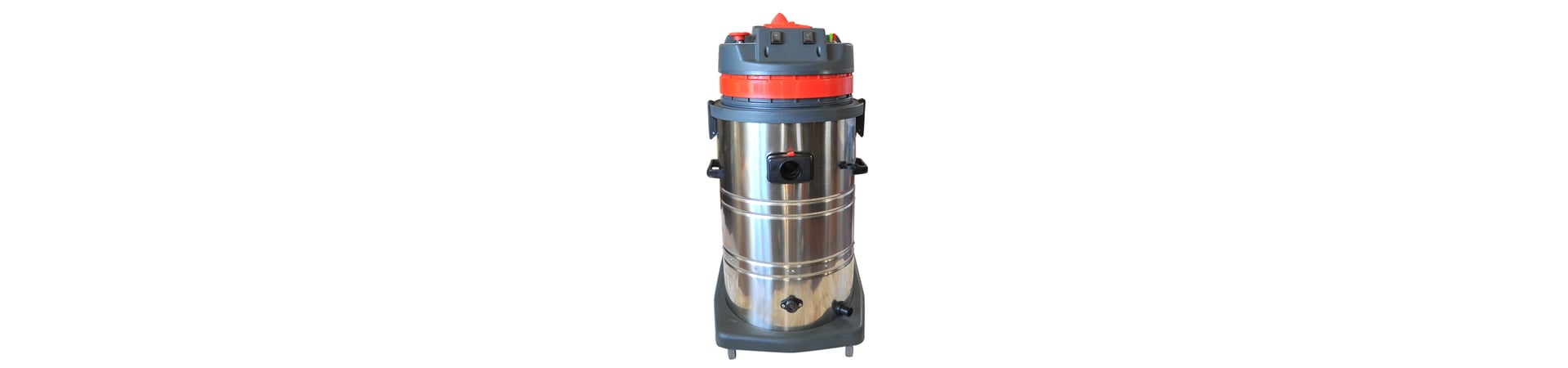

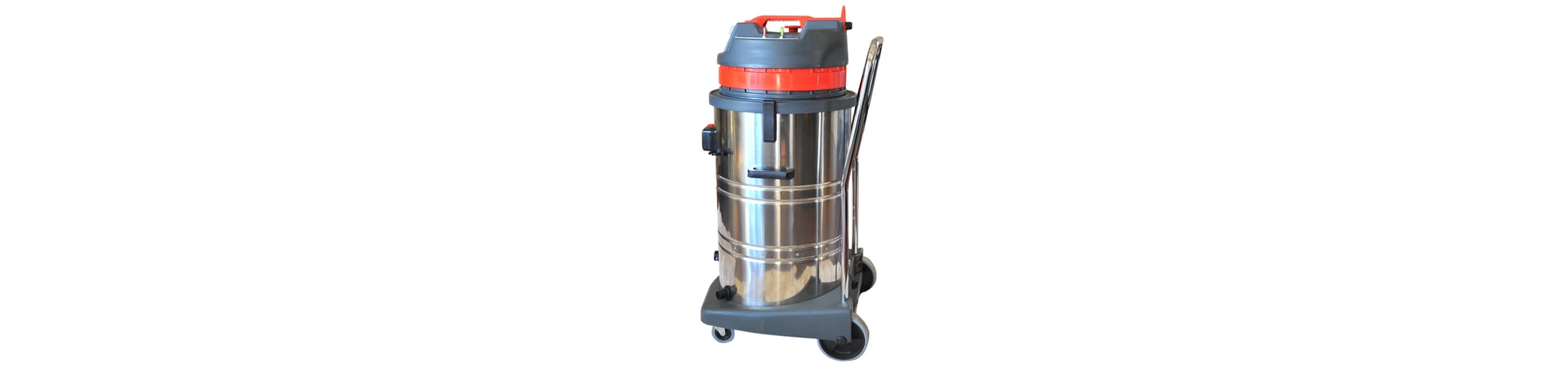

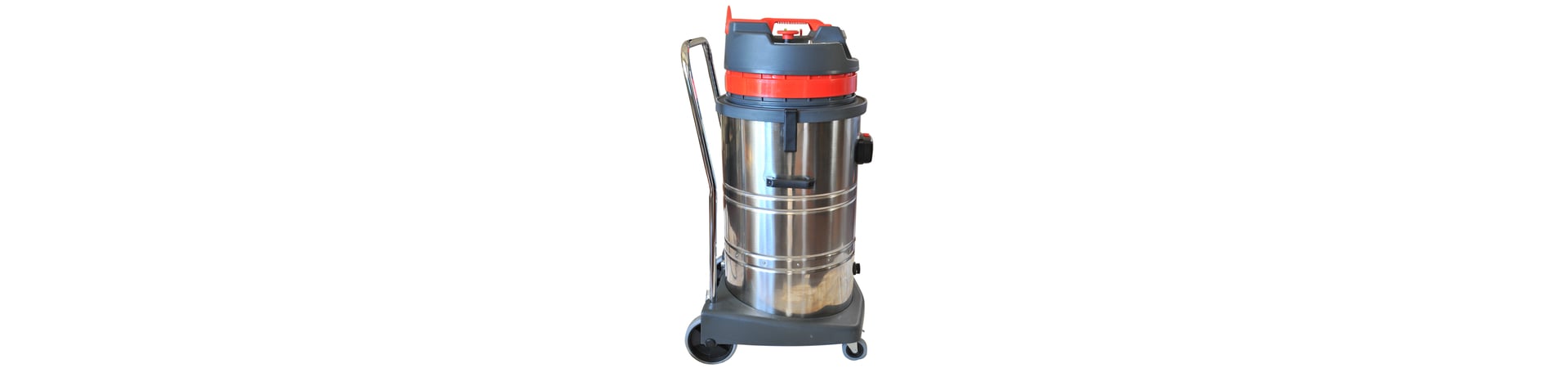

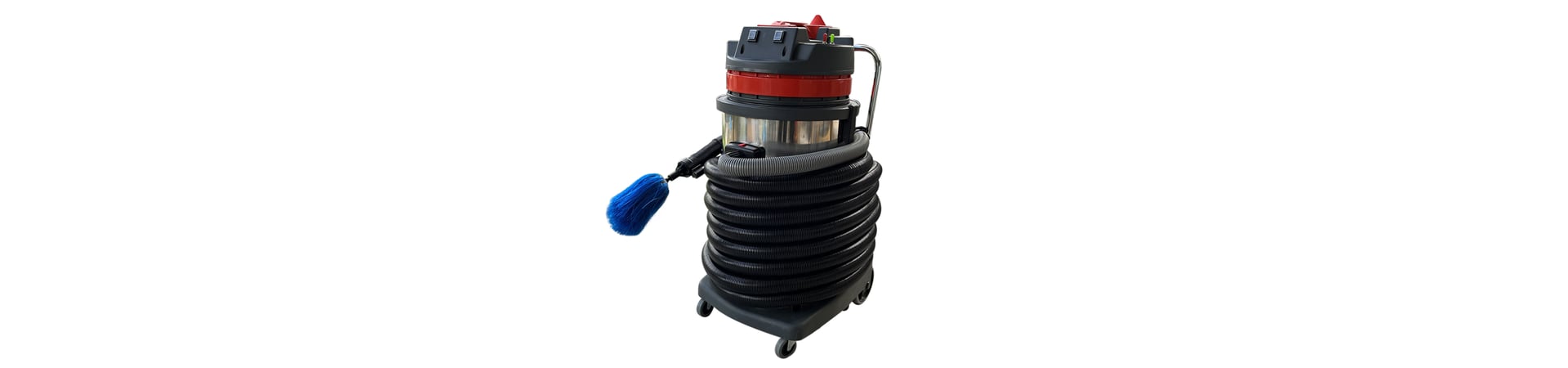

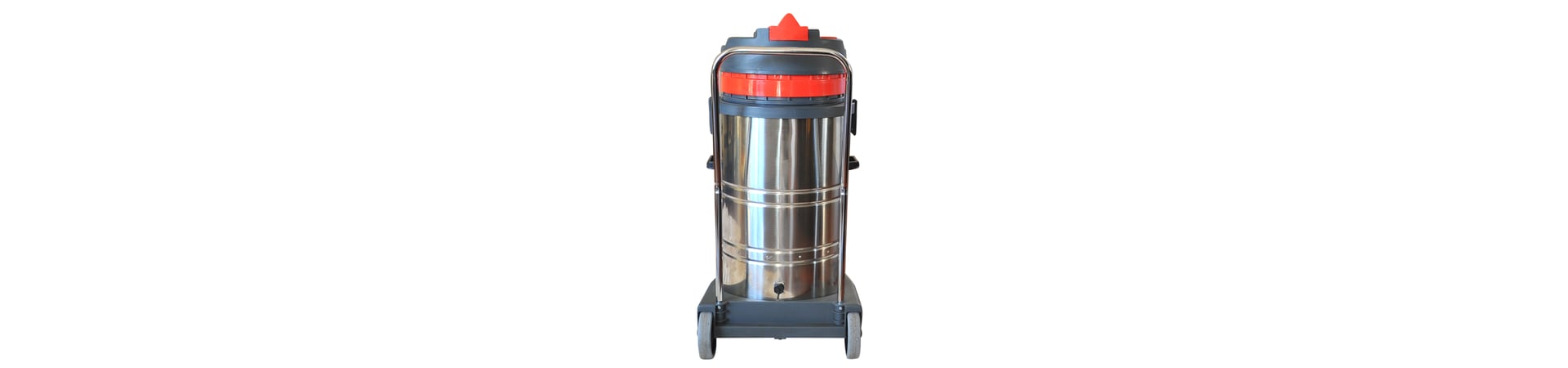

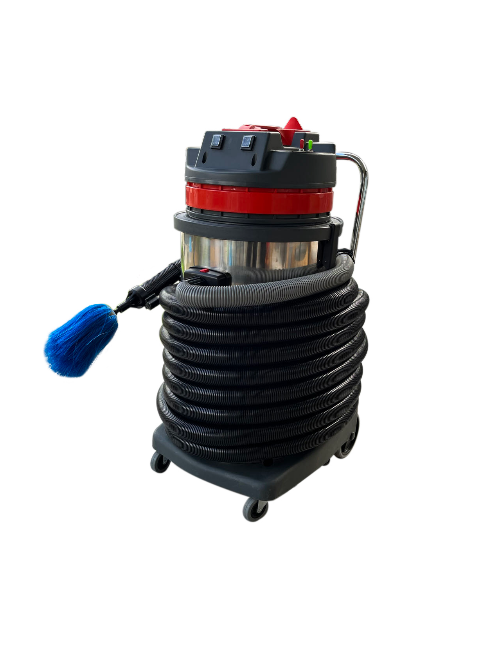

  • 1x 3 in 1 Intelligent Air Duct Cleaning Robot

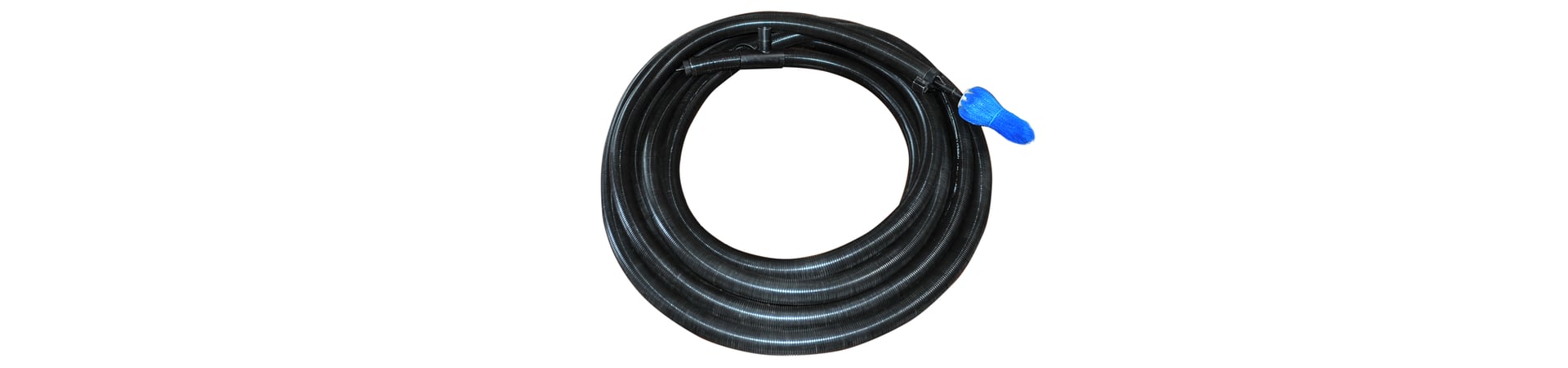

  • 1x 10m 38mm (35′ 1.5″) flexible shaft (flexible shaft + vacuum hose + camera assembly)

  • 1x 10m 50mm (35′ 2″) flexible shaft (flexible shaft + vacuum hose + camera assembly)

  • 1x Camera + LED lighting (Fixed on one of the joint flexible shafts + vacuum hose)

  • 1x remote control (left and right rotation, vacuuming, speed control, etc.)

  • 1x monitor (with display, videotaping, playback, photo taking, storage and other functions)

  • Vacuum cleaner accessories (includes vacuum hose, straight hose, suction head, pick suction head, etc.)

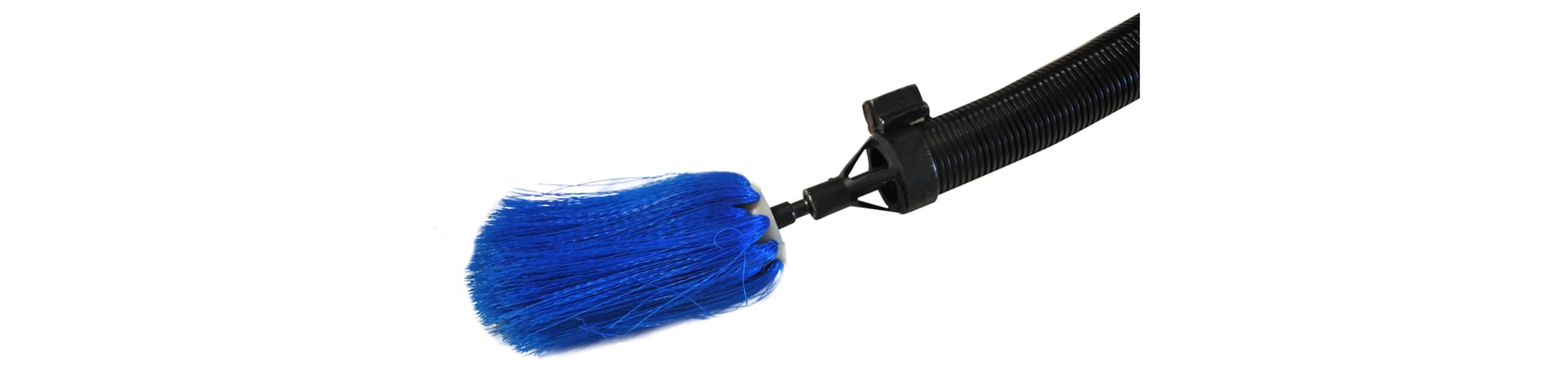

  • Brushes:

    • Vertical brushes: Φ100mm, Φ200mm, Φ300mm (one each)

    • Centrifugal brushes: Φ200mm, Φ300mm, Φ400mm (one each)

  • 1x USB Drive (with video Instructions)

  • 1x hex wrench
